MODEL SHU
Scissor Lift Step Up Attachment
No more using ladders or standing on mid-rails, buckets and planks on the platform. SHU (Step Higher Unrestricted) facilitates safe, OSHA compliant access to narrow spaces, for example ceiling grids and joists.
Description

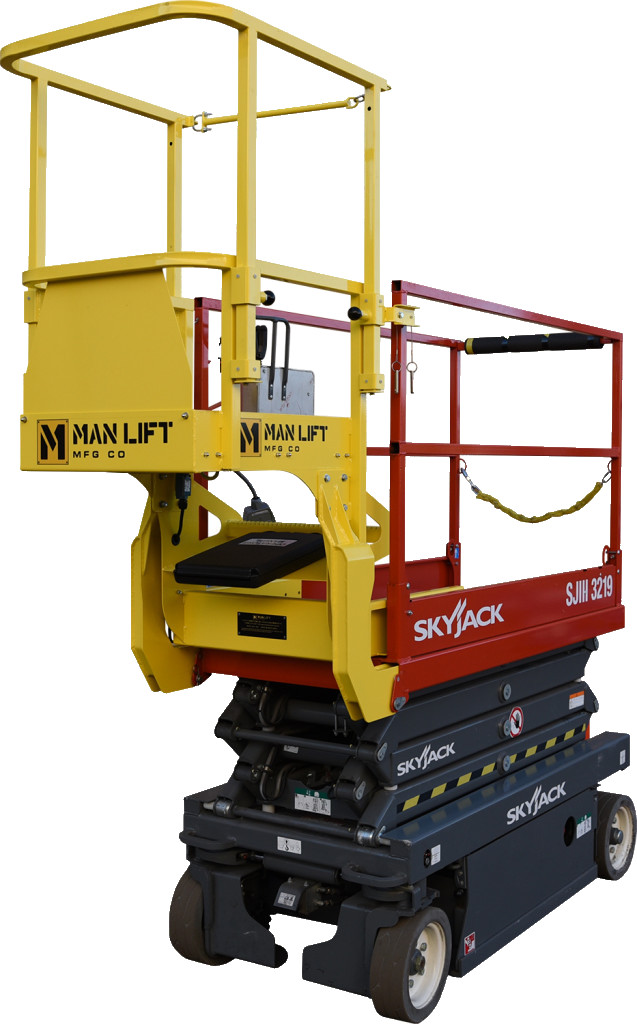

SHU is a compact, vertical extension deck attachment for scissor lift platforms. Designed to replace existing extension decks, installation is a quick and simple process. SHU safely increases working height and can be used with the rails up or lowered with our fall protection system.
safety
■ ANSI A92.6 Compliant
■ CSA B354.2 Compliant
■ OSHA Compliant
■ Fall protection anchorage
■ Safety cutout disables lift operation while on SHU platform when rails are lowered
PRODUCTIVE
■ SHU platform adds 20” of height
■ Safe access to narrow areas
■ Reduces the need for ladders
■ Eliminates standing on railings, buckets or planks
■ Provides access to small overhead spaces
■ When needed, rails can be lowered for additional access
INNOVATIVE
■ Customer and market driven design in response to real industry challenges
■ Reduces risk of injury
■ Easily replaces existing extension deck
■ Retrofit to 2004 and newer, 30” and 32” wide Genie scissor lift
EASY INSTALLATION
■ Remove existing extension deck and roller bracket assembly
■ Lift and position the SHU onto the top of the scissor platform
■ Insert platform roller wheels and brackets, reinstall roller bracket assembly
■ Secure the SHU to the platform using the provided hardware
■ Connect provided cutout switch to quick connect
STANDARDS COMPLIANCE
■ ANSI A92.6
■ CSA B354.2 OSHA Compliant
