MODEL 5392EX

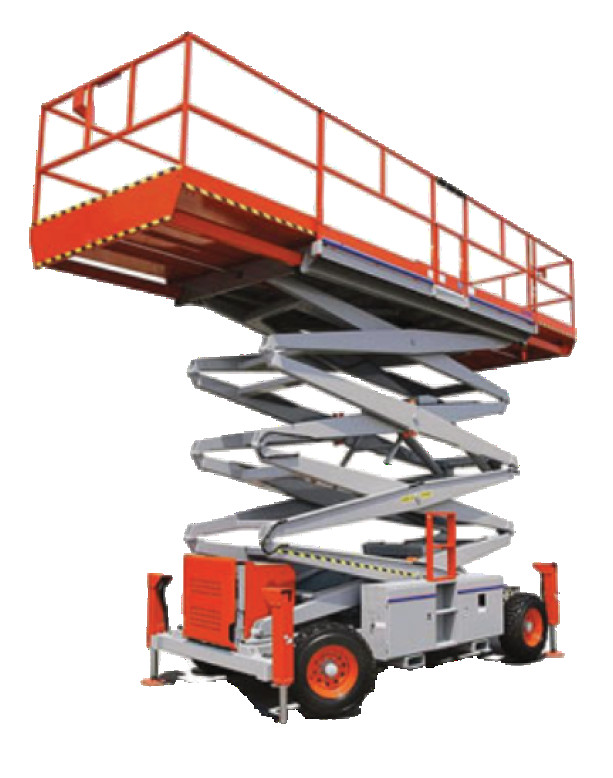

EX Scissor Manlift
The EX Series consists of manlifts that are designed for Class I, Division 1, Group D hazardous environments. These aerial work platforms, forklifts, tuggers, stackers and pallet trucks are self-propelled and include the following features:
- Electric powered control that doesn’t require an external air source
- Smooth proportional hydraulic controls for precise starts and stops
- A new method for hazardous environment protection utilizing readily available components that are easy to maintain
This 53 ft wide scissor lift is designed for large-scale tasks. With a maximum reach of 53 ft, it provides workers with a secure and stable platform even at significant heights with its 5 ft extendable deck. The platform ensures strong longitudinal stability, safely accommodating multiple workers. This 4WD scissor lift is a must-have for demanding maintenance and construction projects.
safety
■ Explosion Proof
■ Class 1, Division 1, Group D
■ Fully Compliant with the Latest UL 583 Type EX Standard
■ ANSI A92.20 & CSA B354.6 Compliant
STANDARD EQUIPMENT
■ 59 ft Platform Height
■ 53 ft Working Height
■ 71.65 x 171.7 in Platform Size
■ 10 in Ground Clearance
■ 1500 lb Platform Capacity
■ 5 ft Extendable Deck
■ 500 lb Extendable Deck Capacity
■ Proportional Drive Controls
■ Battery Condition Indicator
■ Full Height Swing Gate
■ Movement Alarm
OPTIONAL
■ Padded Aircraft Rails
■ Enhanced Padded Aircraft Rails
■ 3/8” Airline to Platform
■ 5 ft Powered Extendable Deck
■ Dual 5 ft Roll-out or Powered
■ Extendable Decks
■ Remote Mount 600 Amp Charger & Battery
■ Drive / Lift-Lower Disable w/ Deck Extended
■ Additional Battery Set w/ Removable Tray
■ Extension Gate w/ Fall Arrest System
■ Scissor Stack Bellow
■ EX Rated LED Task Lighting
