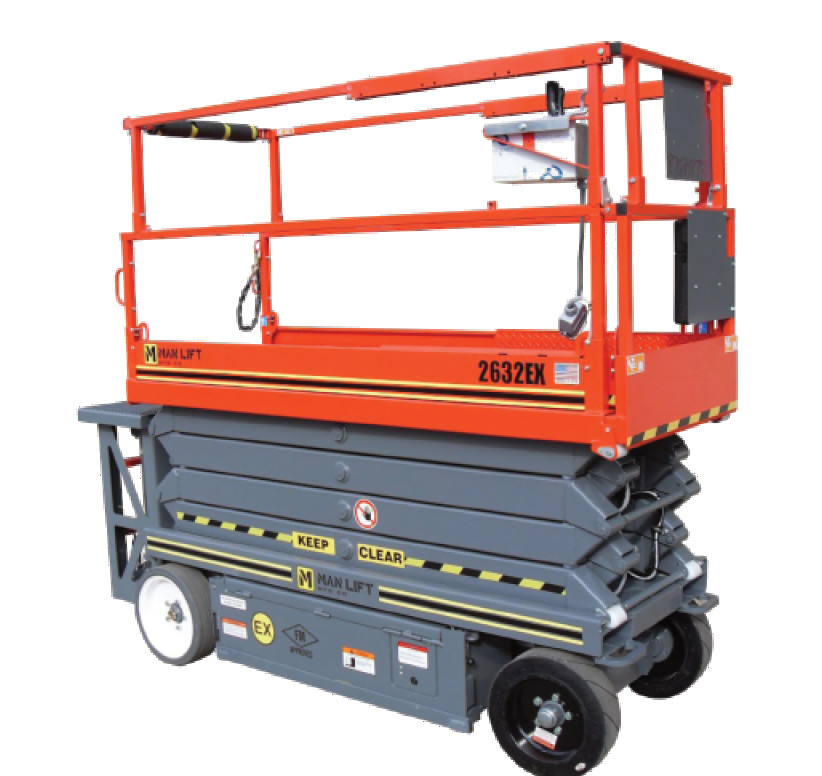

MODEL 2632EX
EX Scissor Manlift 32’ Scissor Lift, EX, Narrow
The EX Series consists of manlifts that are designed for Class I, Division 1, Group D hazardous environments. These aerial work platforms, forklifts, tuggers, stackers and pallet trucks are self-propelled and include the following features:
- Electric powered control that doesn’t require an external air source
- Smooth proportional hydraulic controls for precise starts and stops
- A new method for hazardous environment protection utilizing readily available components that are easy to maintain
The 32 ft narrow scissor lift supports multiple workers on its aerial platform for direct vertical access to elevated work areas. It provides the stability needed for workers to operate safely and efficiently over extended periods. This lift is ideal for indoor use and is a reliable tool for both short- and long-term construction and maintenance projects.
safety
■ Explosion Proof
■ Factory Mutual Approved
■ Class 1, Division 1, Group D
■ Fully Compliant with the Latest UL 583 Type EX Standard
■ ANSI A92.20 & CSA B354.6 Compliant
STANDARD EQUIPMENT
■ 26 ft Platform Height
■ 32 ft Working Height
■ 28 x 84 in Platform Size
■ 3.5 in Ground Clearance
■ 500 lb Platform Capacity
■ 3 ft Extendable Deck
■ 250 lb Extendable Deck Capacity
■ Proportional Drive Controls
■ Battery Condition Indicator
■ 250 Amp Hr Battery
■ Full Height Swing Gate
■ Movement Alarm
OPTIONAL
■ Padded Aircraft Rails
■ Enhanced Padded Aircraft Rails
■ 3/8” Airline to Platform
■ 6 ft Powered Extendable Deck
■ Drive / Lift-Lower Disable w/ Deck Extended
■ Additional Battery Set w/ Removable Tray
■ Extension Gate w/ Fall Arrest System
■ Scissor Stack Bellow
■ EX Rated LED Task Lighting
