MODEL 2032EX

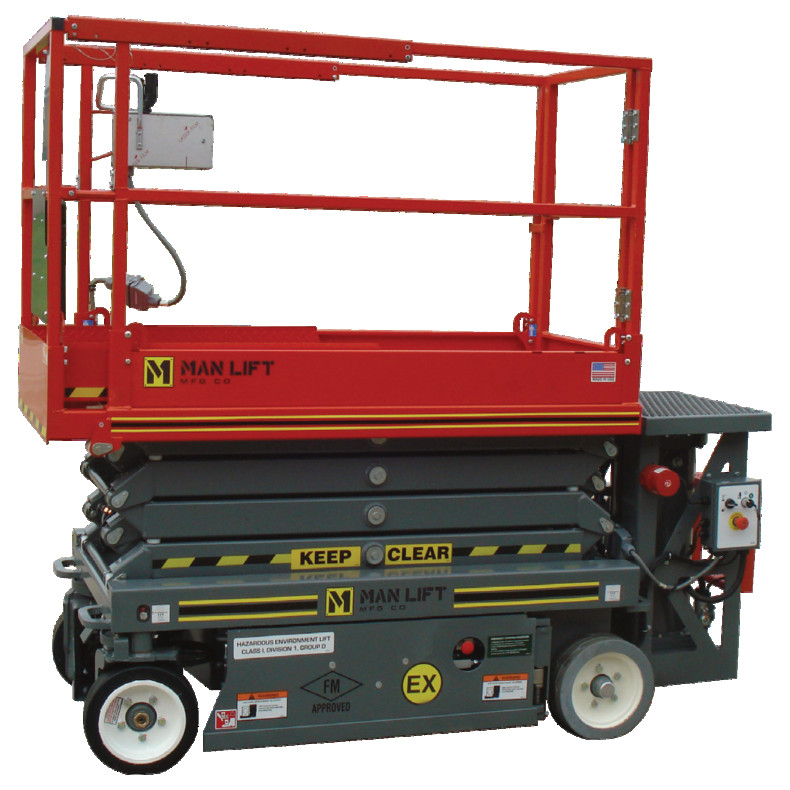

EX Scissor Manlift 2032EX 26’ Scissor Lift, EX, Extendable Deck
The EX Series consists of manlifts that are designed for Class I, Division 1, Group D hazardous environments. These aerial work platforms, forklifts, tuggers, stackers and pallet trucks are self-propelled and include the following features:
- Electric powered control that doesn’t require an external air source
- Smooth proportional hydraulic controls for precise starts and stops
- A new method for hazardous environment protection utilizing readily available components that are easy to maintain
The 26 ft wide scissor lift features an aerial platform that can accommodate multiple workers simultaneously. It provides workers with stable and unobstructed access to elevated areas. This stability makes it ideal for indoor applications such as light fixture repairs, sign maintenance, and other indoor maintenance tasks.
safety
■ Explosion Proof
■ Factory Mutual Approved
■ Class 1, Division 1, Group D
■ Fully Compliant with the Latest UL 583 Type EX Standard
■ ANSI A92.20 & CSA B354.6 Compliant
STANDARD EQUIPMENT
■ 20 ft Platform Height
■ 26 ft Working Height
■ 28 x 84 in Platform Size
■ 3.5 in Ground Clearance
■ 900 lb Platform Capacity
■ 3 ft Extendable Deck
■ 300 lb Extendable Deck Capacity
■ Proportional Drive Controls
■ Battery Condition Indicator
■ 250 Amp Hr Battery
■ Full Height Swing Gate
■ Movement Alarm
OPTIONAL
■ Padded Aircraft Rails
■ Enhanced Padded Aircraft Rails
■ 3/8” Airline to Platform
■ 6 ft Powered Extendable Deck
■ Drive / Lift-Lower Disable w/ Deck Extended
■ Additional Battery Set w/ Removable Tray
■ Extension Gate w/ Fall Arrest System
■ Scissor Stack Bellow
■ EX Rated LED Task Lighting
