The EX Series consists of manlifts that are designed for Class I, Division 1, Group D hazardous environments. These aerial work platforms, forklifts, tuggers, stackers and pallet trucks are self-propelled and include the following features:
- Electric powered control that doesn’t require an external air source
- Smooth proportional hydraulic controls for precise starts and stops
- A new method for hazardous environment protection utilizing readily available components that are easy to maintain

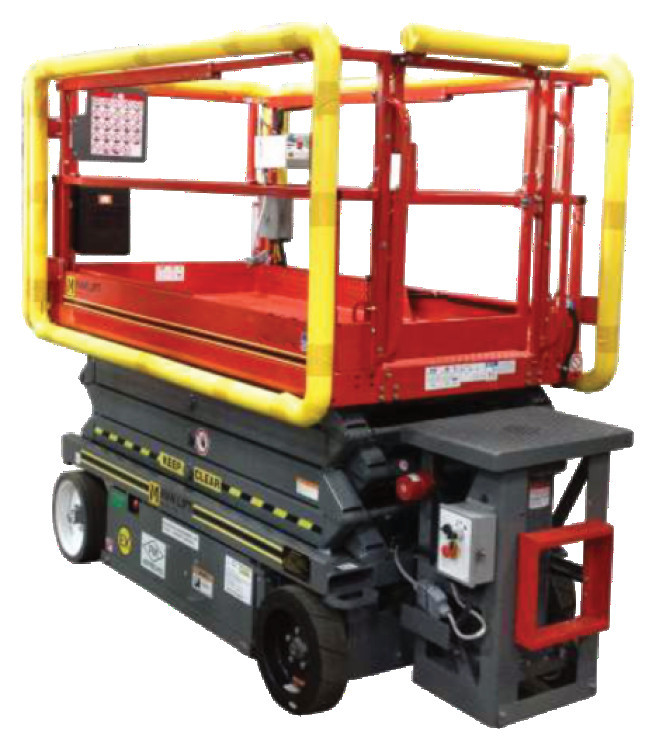

The 46 ft narrow scissor lift is built to accommodate a few workers on its 3 ft extendable deck aerial platform. With a 46 ft vertical reach, this scissor lift is ideal for indoor tasks such as building maintenance, construction work, ceiling projects, bricklaying, light fixture repairs, and even high-ceiling mural painting.
safety
- Explosion Proof
- Factory Mutual Approved
- Class 1, Division 1, Group D
- Fully Compliant with the Latest UL 583 Type EX Standard
- ANSI A92.20 & CSA B354.6 Compliant
STANDARD EQUIPMENT
- 40 ft Platform Height
- 46 ft Working Height
- 42 x 86 in in Platform Size
- 4.5 in Ground Clearance
- 770 lb Platform Capacity
- 3 ft Extendable Deck
- 265 lb Extendable Deck Capacity
- Proportional Drive Controls
- Battery Condition Indicator
- Full Height Swing Gate
- Movement Alarm
OPTIONAL
- Padded Aircraft Rails
- Enhanced Padded Aircraft Rails
- 3/8” Airline to Platform
- 3 ft Powered Extendable Deck
- Dual 4 ft Roll-out or Powered Extendable Decks
- Drive / Lift-Lower Disable w/ Deck Extended
- Additional Battery Set w/ Removable Tray
- Extension Gate w/ Fall Arrest System
- Scissor Stack Bellow
- EX Rated LED Task Lighting
