The EX Series consists of manlifts that are designed for Class I, Division 1, Group D hazardous environments. These aerial work platforms, forklifts, tuggers, stackers and pallet trucks are self-propelled and include the following features:
- Electric powered control that doesn’t require an external air source
- Smooth proportional hydraulic controls for precise starts and stops
- A new method for hazardous environment protection utilizing readily available components that are easy to maintain

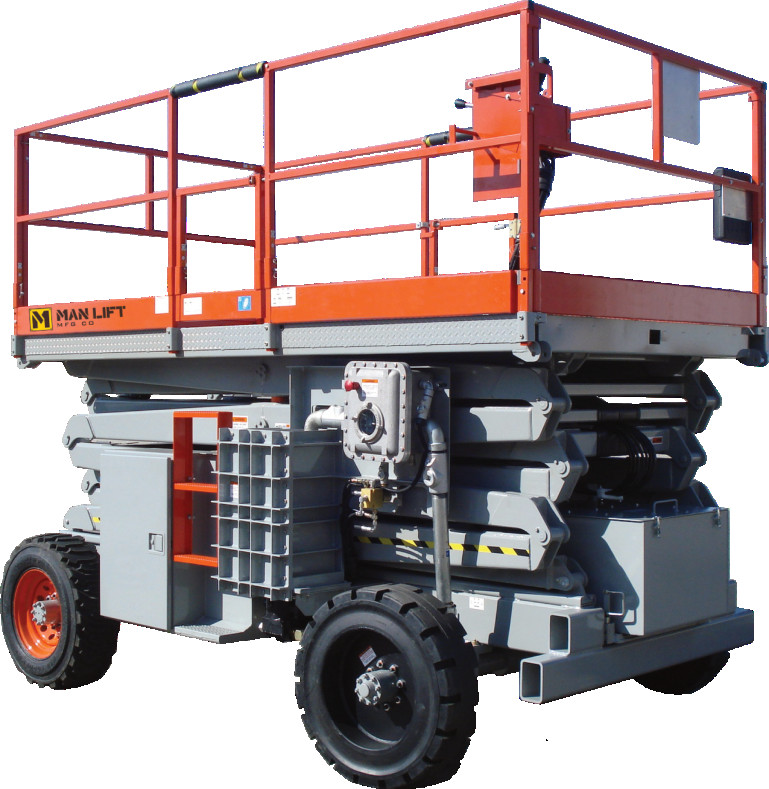

This 39 ft wide, with 5 ft extendable deck scissor lift has been designed to support several workers at once with its aerial work platform. With its 39 ft of vertical reach, this scissor lift is generally used for outdoor maintenance, construction, industrial applications or even high-ceiling mural painting are ideal jobs for this scissor lift.
safety
- Explosion Proof
- Factory Mutual Approved
- Class 1, Division 1, Group D
- Fully Compliant with the Latest UL 583 Type EX Standard
- ANSI A92.20 & CSA B354.6 Compliant
STANDARD EQUIPMENT
- 33 ft Platform Height
- 39 ft Working Height
- 71.65 x 171.7 in in Platform Size
- 10 in Ground Clearance
- 2,750 lb Platform Capacity
- 5 ft Extendable Deck
- 500 lb Extendable Deck Capacity
- Proportional Drive Controls
- Battery Condition Indicator
- Full Height Swing Gate
- Movement Alarm
OPTIONAL
- Padded Aircraft Rails
- Enhanced Padded Aircraft Rails
- 3/8” Airline to Platform
- 4 ft Powered Extendable Deck
- Dual 4 ft Roll-out or Powered Extendable Decks
- Drive / Lift-Lower Disable w/ Deck Extended
- Additional Battery Set w/ Removable Tray
- Extension Gate w/ Fall Arrest System
- Scissor Stack Bellow
- Rated LED Task Lighting
